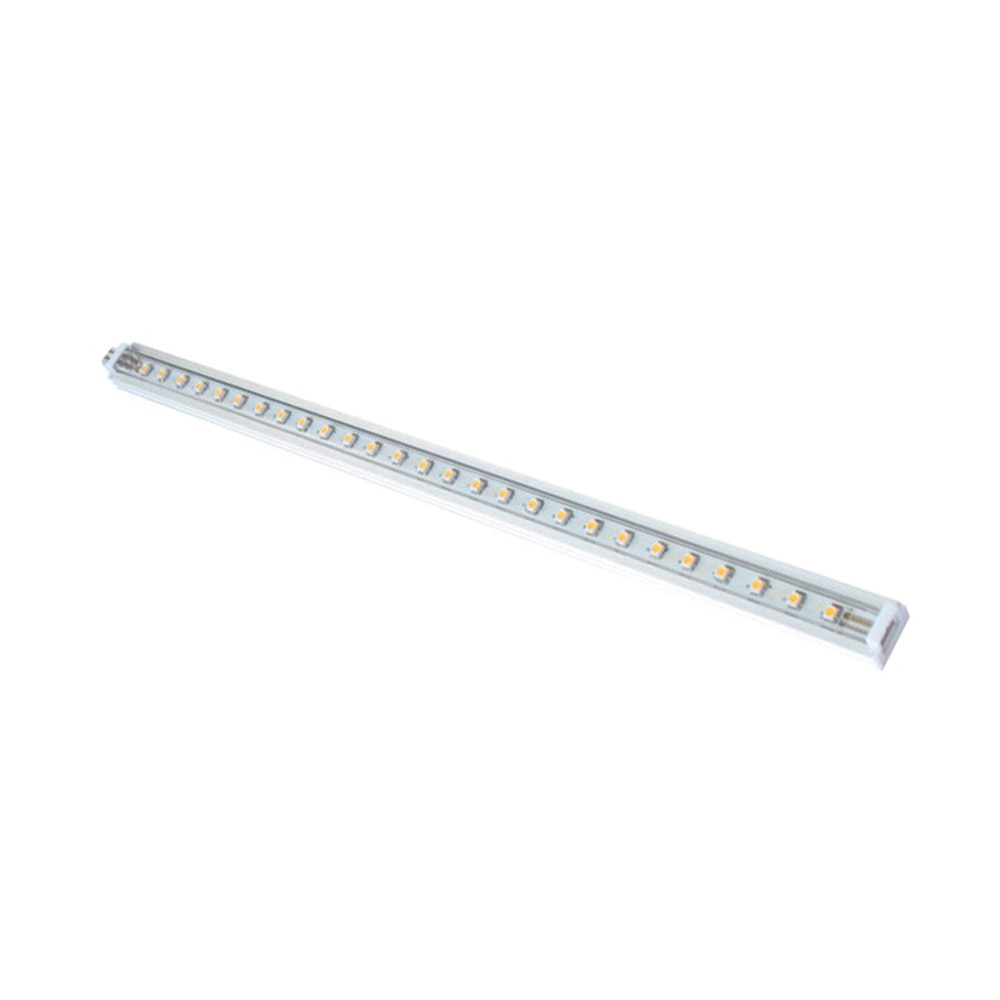

Linkable LED Mini Linear Light

Connect 1 LED Linear Light to the next without the use of any wires. Standard 12" Length, can connect from one to the next to a custom length.

Can be dimmed with Low Voltage LED Dimmers that are available on our accessories page.
PrintEmail

Details and Specs

Features

GBL's linkable LED linear light has a thin 9mm profile and includes surface mounting hardware for a finished low profile flush mount LED light. Built-in aluminum heat sink. Includes easy connector with 12" wire lead and low profile surface mount connector.

Adjustable beam spread mounting hardware and Wire jumpers available.

Size: Length 12" x 5/8" x 1/4"
Voltage 12VDC
Watts: 2.2 Watts
Lumens: 190
Certifications: CE and cETLus (CSA CANADA and UL USA)


LED Benefits

Reduced Maintenance and Replacement Costs
Great for use with Solar Power or Batteries
Inexpensive to Operate
Reduced Air Conditioner Loads because of low heat
Environmentally Friendly (UV and IR Free)
Easy Installation
Low Voltage (12V DC)
Can adjust the fixture to focus light where its needed.
SMD LED Chip Technology
Simple installation & easy operation
Super thin profile - 8mm
Easily connect together for larger applications
Adjustable light angle - Aluminum housing
Low heat output


Applications:
Task lighting
Under cabinet light
Display lighting
Back bar displays

Features

GBL's linkable LED linear light has a thin 9mm profile and includes surface mounting hardware for a finished low profile flush mount LED light. Built-in aluminum heat sink. Includes easy connector with 12" wire lead and low profile surface mount connector.

Adjustable beam spread mounting hardware and Wire jumpers available.

Size: Length 12" x 5/8" x 1/4"
Voltage 12VDC
Watts: 2.2 Watts
Lumens: 190
Certifications: CE and cETLus (CSA CANADA and UL USA)


LED Benefits

Reduced Maintenance and Replacement Costs
Great for use with Solar Power or Batteries
Inexpensive to Operate
Reduced Air Conditioner Loads because of low heat
Environmentally Friendly (UV and IR Free)
Easy Installation
Low Voltage (12V DC)
Can adjust the fixture to focus light where its needed.
SMD LED Chip Technology
Simple installation & easy operation
Super thin profile - 8mm
Easily connect together for larger applications
Adjustable light angle - Aluminum housing
Low heat output


Applications:
Task lighting
Under cabinet light
Display lighting
Back bar displays

SKU  LL3-ADJ
VOLTAGE  12V DC
WATTAGE  2.8W
LIGHT SPREAD  120dg
# OF LEDs  27
COLOR TEMPERATURE Warm White 3000K or White 5500K
DIMENSIONS  L305 x W16 x H8mm
LUMEN OUTPUT  190
HOUSING  Aluminum
RATING  cETLus Listed
OTHER
